SAC Bullet Comparators

Description

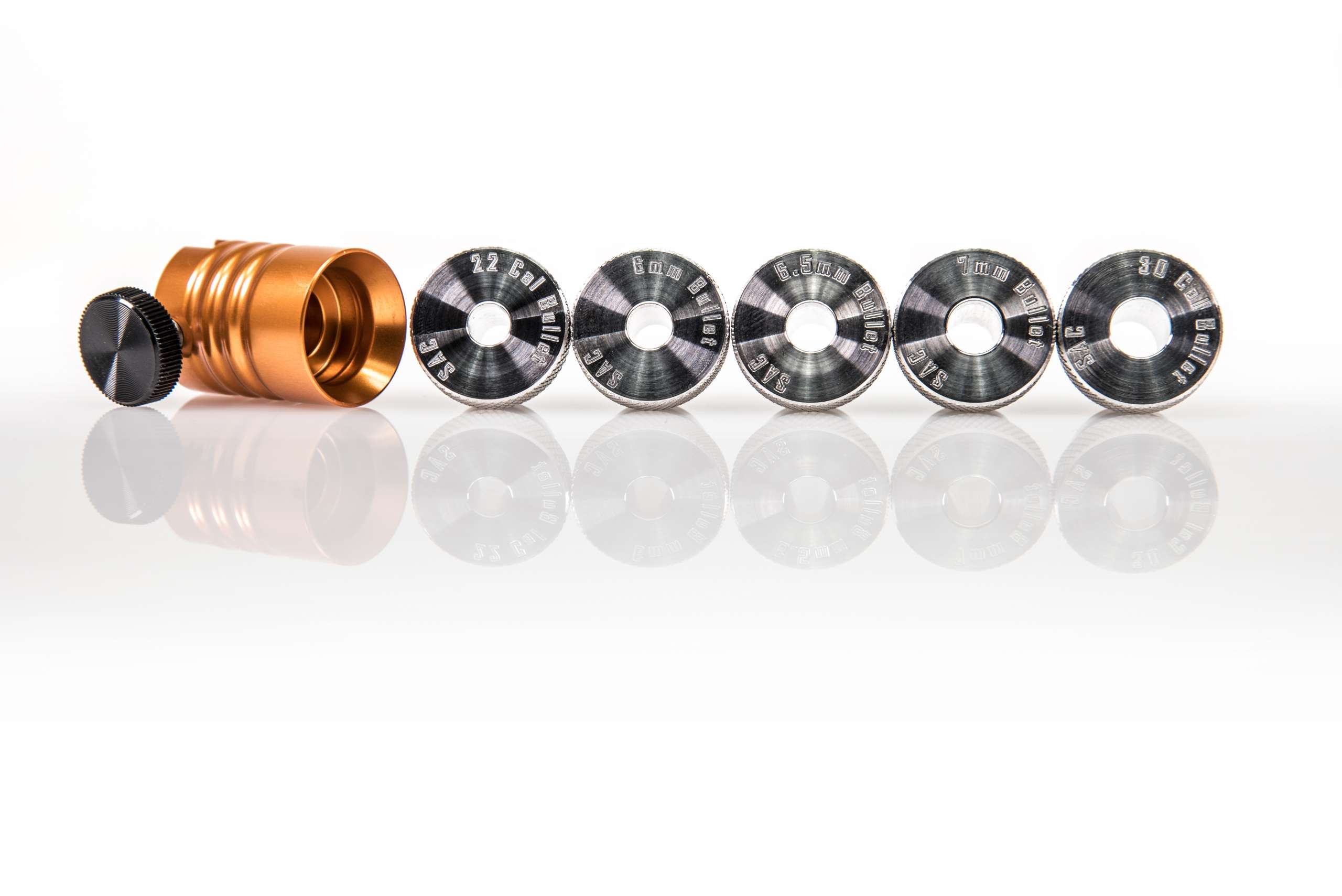

—-BULLET COMPARATOR INSERTS

SHORT ACTION CUSTOMS UNIQUE BULLET COMPARATOR USES A 3.0 DEGREE “LEAD ANGLE” TO CONTACT YOUR BULLET’S OGIVE IN THE EXACT SAME LOCATION AS YOUR BARREL DOES, GIVING YOU THE MOST ACCURATE AND USEFUL MEASUREMENTS.

FOR EXAMPLE, A 6.5MM BULLET INSERT STARTS AT A .266″ DIAMETER AND ANGLES DOWN AT 3.0 DEGREES TO .256″ DIAMETER, EXACTLY LIKE A 6.5MM CHAMBERED BARREL WOULD.

MANUFACTURED FROM 17-4 STAINLESS STEEL, OUR BULLET INSERTS FOR THE MODULAR HEADSPACE COMPARATOR ARE THE MOST ACCURATE WAY TO MEASURE YOUR BULLETS AND LOADED AMMUNITION FOR CONSISTENCY.

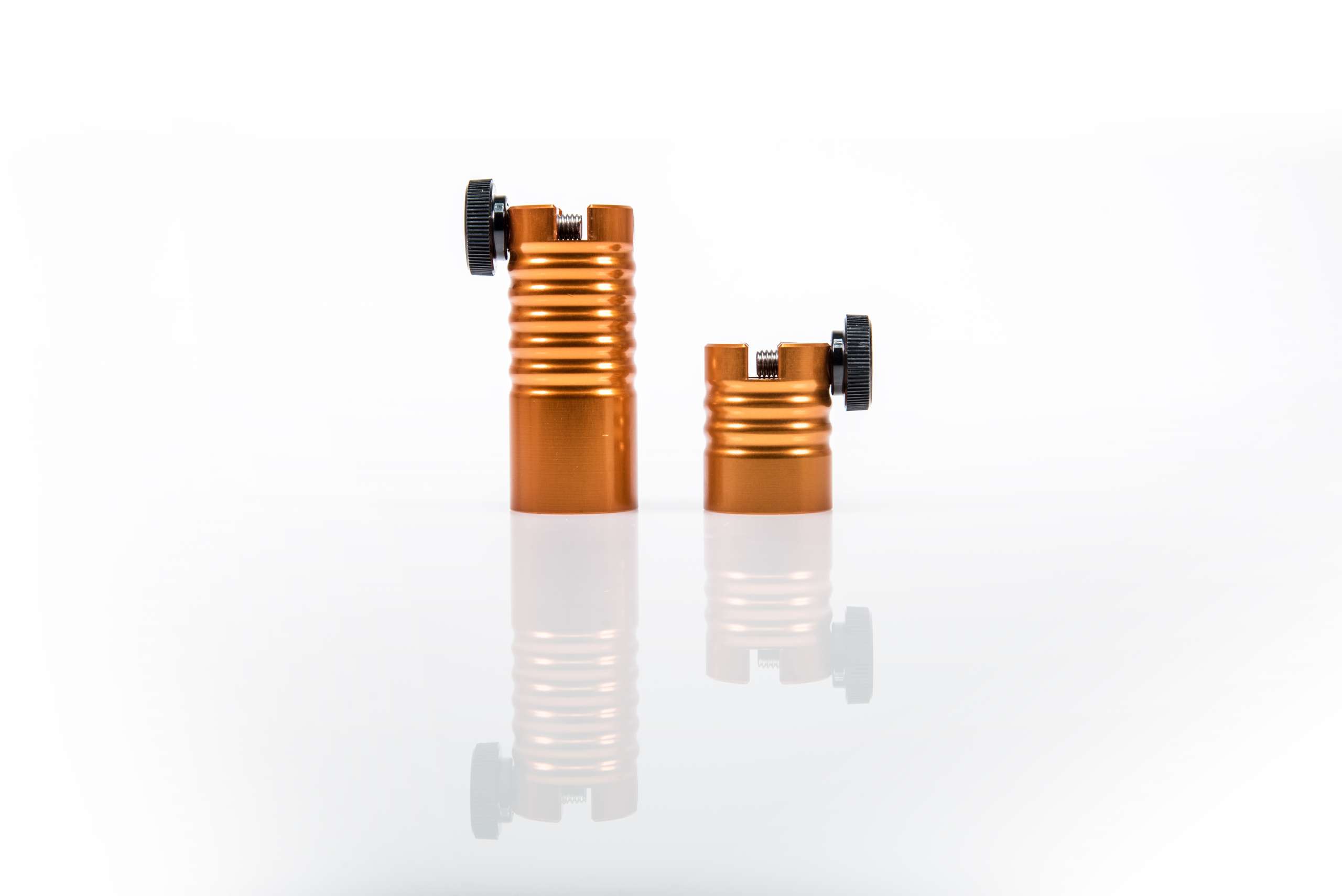

—-COMPARATOR HOUSINGS

Long: The longest of the two configurations, works with loaded ammunition up to 338 Lapua Magnum with solid turned bullets.

Short: The shortest body of the two configurations. More compact when the customer wants to dedicate a body for measuring fired brass or bullets only.

Made from 6061 Aluminum. These bodies clamp onto your dial / digital calibers allowing the Headspace and Bullet inserts to be changed quickly without the use of any tools. Both Standard and Short Modular Headspace Comparator Bodies have two clamping configurations when mounting to your dial calipers.

CONFIGURATION “C”: CENTERED

With the 10/32 Thumb Screw mounted on the bottom side with a “C” means that the Modular Headspace Comparator Body will be centered on the dial calipers. This is standard for all normal uses.

CONFIGURATION “O”: OFFSET

With the 10/32 Thumb Screw mounted on the bottom side with a “O” means that the Modular Headspace Comparator Body will be offset on the dial calipers. When using the Hornady COAL measuring tools, the Modular Headspace Comparator body must be offset on the dial calipers in order for the Hornady tool to be properly aligned with the Modular Headspace Comparator assembly.

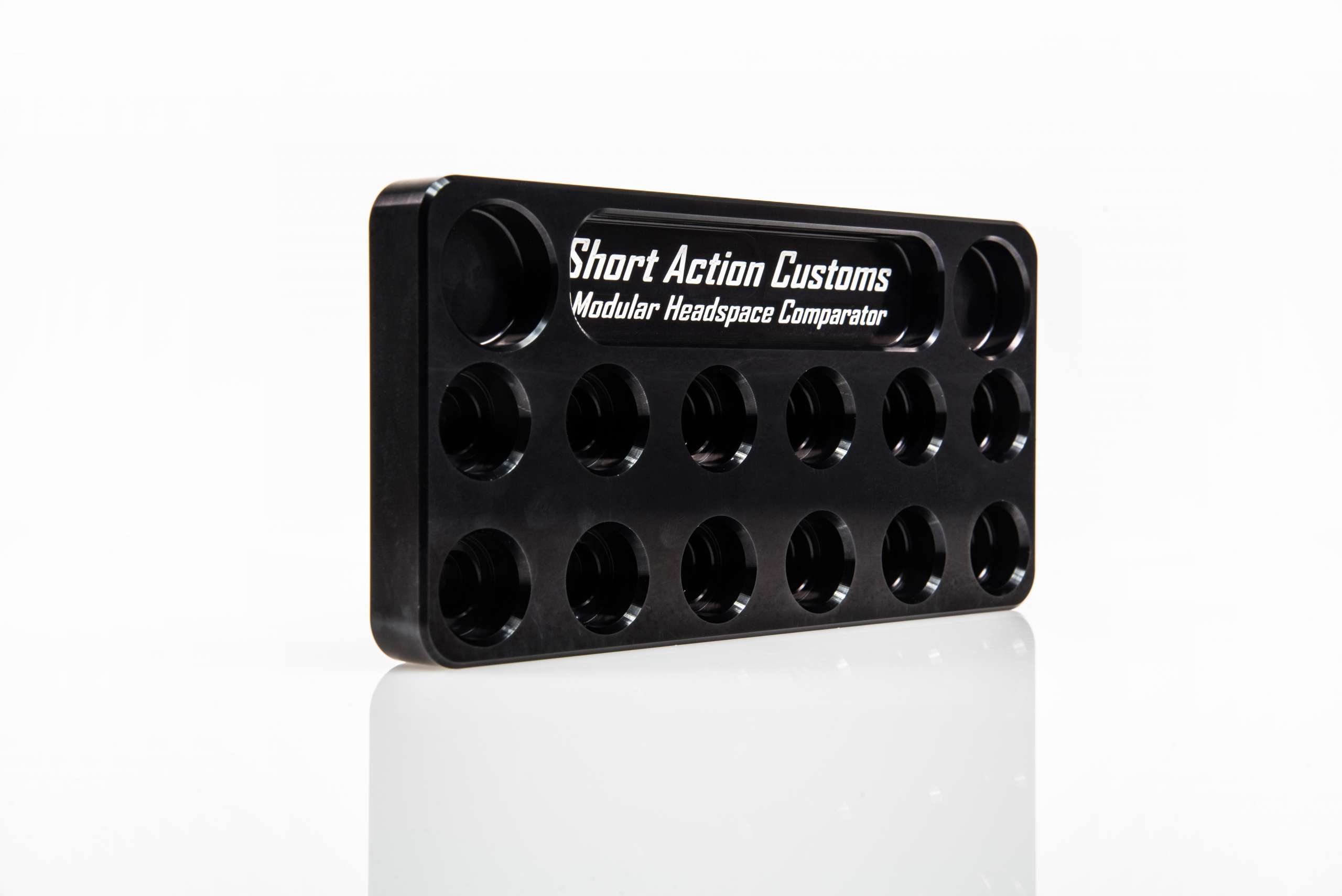

—-MODULAR COMPARATOR STAND

Holds your housings and inserts to stay nicely organized
